Water Cat 500
HUTIRA CRYSTAL CLEAR WATER
Water Cat 500
Compact purification unit with possibility of modification
according to customer requirements and local conditions.
QUICK OVERVIEW
| up to 0,5m3h | 2 400 |  |
150W |
| 1 unit has a capacity of up to 0.5 m3/h of water. | 1 unit supplies up to 2400 people drinking water per day. | Thanks to its compact dimensions, it is easy to fit into the interior. |
Power input; can be connected to the electric network, generator or solar power supply. |
DESCRIPTION

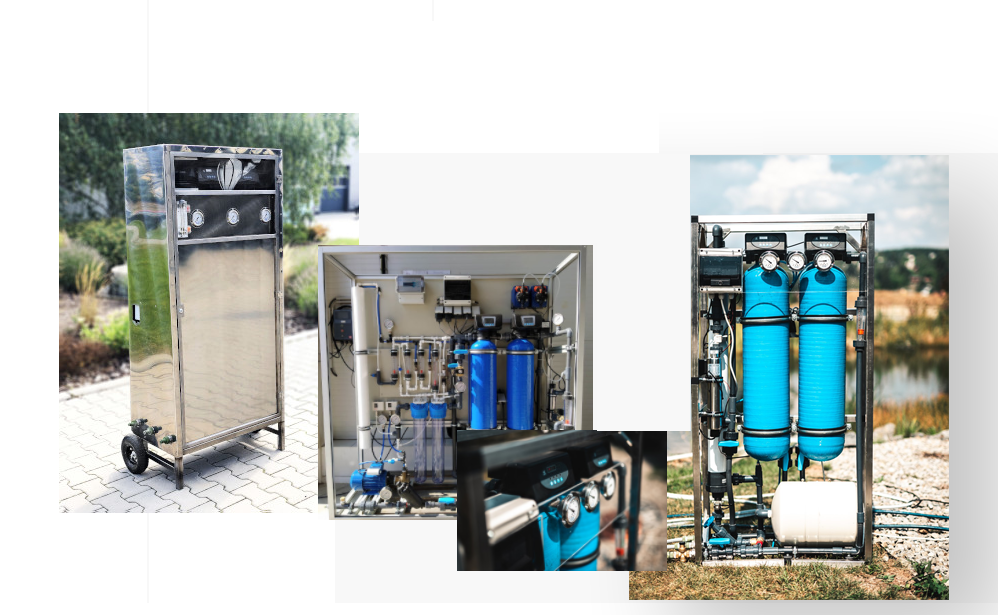

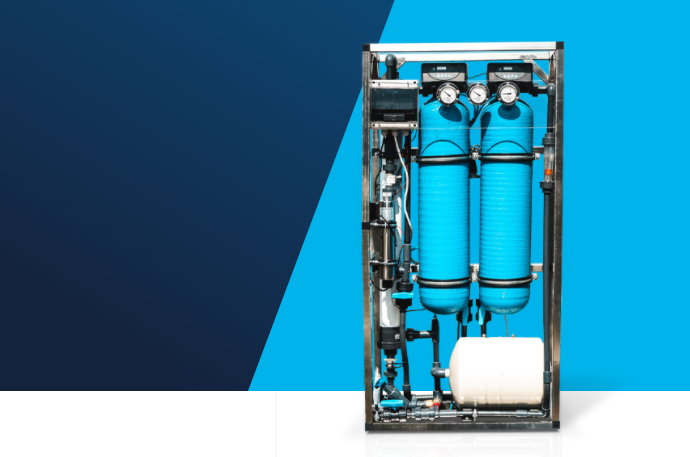

The inlet water is pumped through an automatic purge filter, after which the water is treated on 2 pressure filters filled with selective filling to remove unwanted substances (filter washing is controlled automatically). The next step is ultra filtration, which removes bacteria and viruses as well as color and residual dirt from the treated water. The last level of treatment is hygienic water protection by UV radiation.
The ability to adapt individually according to requirements and local conditions.
Quick overview
including trailer
Lze napojit na el. síť, generátor či solární napájení.
Technical Specifications
| Output | Power consumption | Weight | Costs of treatment of 1m3 of water | Water consumption for 1 inhabitant by 5 l/day | Water consumption for 1 inhabitant by 100 l/day |
|---|---|---|---|---|---|
| 300-500 l/h | 150 W | 120 kg | 1 Kč | up to 2400 people | up to 120 people |
